The Role of DMX and RGB in Enhancing LED Stadium Lighting Experiences

The Role of DMX and RGB in Enhancing LED Stadium Lighting Experiences

Stadium lighting has come a long way from the basic floodlights that illuminated sports events decades ago. Modern stadiums now rely on advanced technologies such as LED lighting systems, which provide enhanced brightness, energy efficiency, and flexibility in controlling the lighting environment. Two critical components in the evolution of stadium lighting are DMX (Digital Multiplex) control systems and RGB (Red, Green, Blue) color mixing. Together, they enable sophisticated lighting effects, dynamic color changes, and enhanced visual experiences for both players and spectators.

In this article, we will explore the roles of DMX and RGB in LED stadium lights, how they work, their benefits, and how they are used to create spectacular lighting displays in stadiums.

What is DMX?

DMX (Digital Multiplex) is a widely adopted digital communication protocol used to control lighting and other stage effects. It originated in the 1980s as a way to standardize and simplify the control of stage lighting and effects for live performances and large venues, such as theaters and stadiums. Over the years, DMX has become the industry standard for controlling intelligent lighting systems, including LED stadium lights.

In simple terms, DMX is a language that allows lighting controllers (or DMX consoles) to send signals to various lighting fixtures, instructing them on how to behave. These instructions include commands for color changes, dimming, moving lights, and special effects like strobe and pulse.

Key Features of DMX:

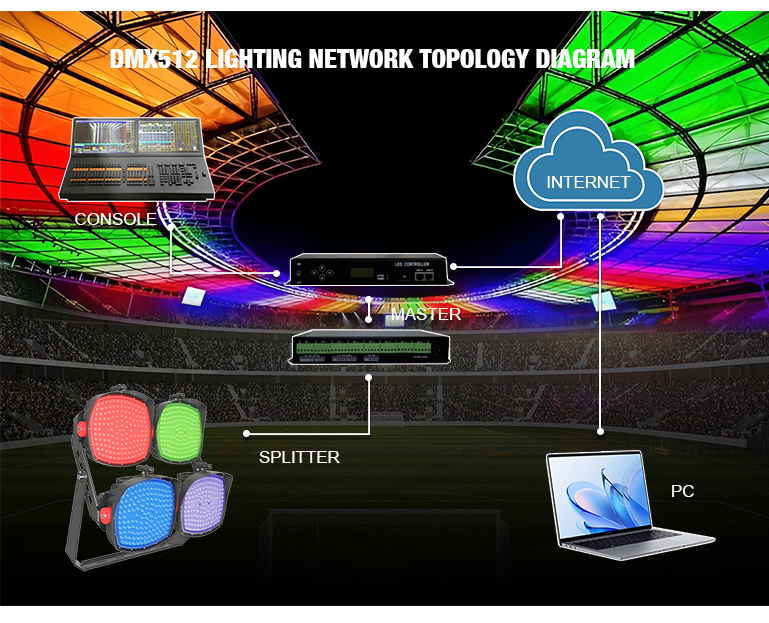

Signal Transmission: DMX uses a standard 5-pin XLR cable or Cat5 cable to transmit data from the controller to the lighting fixtures. The data is sent in a continuous stream of commands.

Addressing: Each lighting fixture connected to a DMX network is assigned a unique address, allowing the controller to communicate with each light independently or in groups.

Channels: DMX lighting control systems work by dividing a light's behavior into "channels," each of which controls a specific parameter such as brightness, color, or position. A typical DMX controller can manage hundreds of channels simultaneously, enabling complex lighting effects.

Real-time Control: DMX allows for real-time control of lights during events, which is especially important in dynamic settings like sports matches, concerts, and other live performances.

DMX is widely used in various fields, such as theatrical lighting, architectural lighting, and even outdoor lighting installations. In stadiums, the application of DMX technology can be seen in large-scale light shows, dynamic color changes, and energy-efficient control of floodlights for sports events.

What is RGB?

RGB refers to the color model used in electronic displays, lighting, and digital imaging. The acronym stands for Red, Green, and Blue, the three primary colors of light that, when combined in different intensities, can create a full spectrum of colors. This additive color model is the basis of color mixing in LED lighting.

How RGB Works in LED Lighting:

Red, Green, and Blue LEDs: RGB LED lights contain separate diodes for red, green, and blue light. By adjusting the intensity of each of these colors, you can create any color on the visible spectrum.

Red: The longest wavelength in the visible spectrum, responsible for producing warm, reddish hues.

Green: A middle wavelength, often used to produce vibrant and cool colors.

Blue: The shortest wavelength, contributing to cooler and more intense colors.

Color Mixing: The basic principle behind RGB color mixing is additive mixing. When different intensities of red, green, and blue are combined, they can produce various colors. For instance:

Full intensity of red, green, and blue (RGB at 255) produces white light. Red and green together create yellow. Green and blue together create cyan, and so on.

16.7 Million Colors: Because RGB LED lights can vary the intensity of each color from 0 to 255, the combination of these three colors can produce over 16 million different color combinations. This flexibility is one of the reasons RGB LED lights are so popular for applications that require dynamic and colorful lighting effects, like stadium lighting.

Benefits of RGB in Stadium Lighting:

Vivid and Dynamic Colors: RGB LED lights allow for an almost unlimited range of colors, enabling stunning visual effects in stadiums.

Customization: With RGB, stadiums can set the mood or theme of the event by changing colors throughout the match or performance.

Energy Efficiency: RGB LEDs consume less power than traditional incandescent bulbs and are more efficient than halogen or metal halide lights. This is particularly important for large-scale venues where energy costs can be substantial.

Increased Lifespan: LED lights have a much longer operational life compared to traditional lighting solutions. This makes RGB LEDs cost-effective in the long run.

How DMX and RGB Work Together in LED Stadium Lights

DMX control systems and RGB color mixing go hand-in-hand in creating dynamic and flexible stadium lighting solutions. By using DMX to control RGB-enabled LED fixtures, lighting designers can achieve highly sophisticated effects and fully customizable lighting experiences.

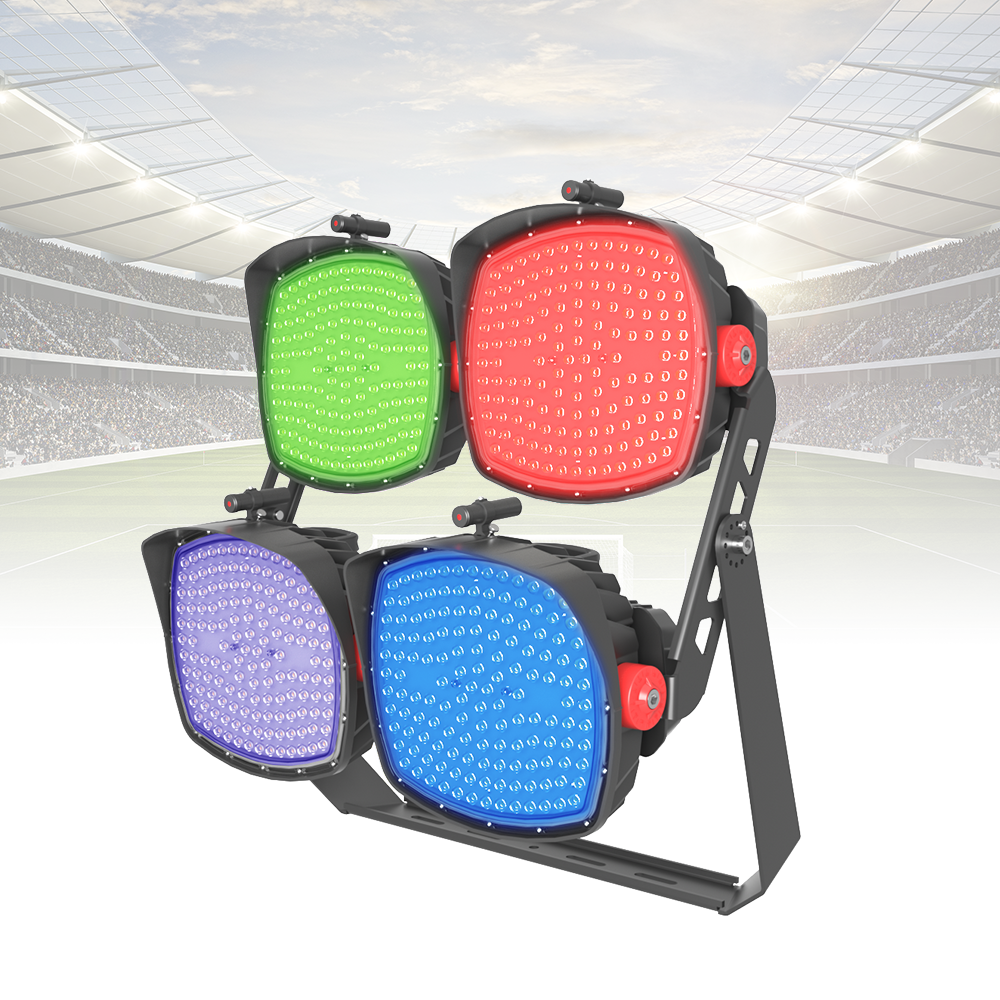

DMX-Controlled RGB Lighting Fixtures:

In a typical DMX-controlled RGB LED stadium light, the DMX protocol is used to control each of the red, green, and blue channels independently. The lighting controller sends signals to the RGB fixture to adjust the brightness and intensity of each color, which in turn produces the desired effect. For example:

Dynamic Color Effects: A lighting designer might program a sequence where the stadium lights transition smoothly from red to blue to green. Using DMX, the intensity of each RGB channel is gradually adjusted to create a smooth, flowing color change that can be synchronized with the action on the field.

Spotlight Effects: During a critical moment in a match, the lighting system might spotlight a player or an area of the field with a specific color, using RGB to achieve the desired hue. DMX allows precise control over the positioning and intensity of these effects.

Chase and Strobe Effects: DMX can also control RGB lights in patterns, such as a "chase" effect where lights cycle through different colors, or a strobe effect for exciting moments during live events. These effects can be programmed to enhance the drama and excitement of a match or performance.

Benefits of DMX and RGB Integration:

Precision Control: DMX allows for precise control over each RGB channel, enabling highly detailed lighting effects that can be adjusted in real-time.

Synchronization: DMX-controlled RGB lights can be synchronized to match other lighting effects or multimedia displays, such as giant LED screens or video walls, creating a cohesive visual experience across the entire stadium.

Customization: Stadiums can tailor their lighting to different events, such as changing the color scheme for specific teams or creating custom lighting displays for opening ceremonies or halftime shows.

Energy Efficiency: The combination of DMX control and RGB LEDs makes it possible to optimize lighting usage, ensuring that only the necessary areas of the stadium are illuminated with the appropriate brightness and color.

Applications of DMX and RGB in Stadium Lighting

The application of DMX and RGB in stadium lighting systems goes beyond mere illumination. The ability to change colors and control lighting effects in real-time allows stadiums to enhance the overall fan experience, improve the aesthetic appeal, and make events more engaging. Some key applications include:

1. Team Identity and Branding

RGB LED lighting allows for the customization of colors, which can be used to represent team identities and enhance fan loyalty. For example, a stadium might program the lights to shine in the team’s colors before the start of a game or during key moments such as goals or touchdowns. This adds an extra layer of excitement and reinforces team branding.

2. Special Effects for Live Events

Stadiums often host concerts, opening ceremonies, and other entertainment events in addition to sports. DMX-controlled RGB lights allow for dynamic lighting effects that complement the performance, including strobe lights, light shows, and color transitions synchronized with music or special effects.

3. Interactive Lighting

In some modern stadiums, RGB lighting is used for interactive fan experiences. For instance, the stadium lights can change color in response to crowd reactions, such as when fans cheer, clap, or wave LED wristbands provided to spectators. This creates an immersive, participatory environment.

4. Broadcasting and Television

For television broadcasts, dynamic lighting effects created with DMX and RGB help enhance the visual appeal of the event. Colorful lighting schemes and precise lighting angles can be used to highlight key players, moments, and features of the stadium, making the broadcast more visually exciting.

The integration of DMX control systems and RGB color mixing in LED stadium lights has revolutionized the way stadiums light up events. Together, they provide an advanced, flexible, and energy-efficient solution for creating stunning visual effects, enhancing the fan experience, and offering precise control over the lighting environment. By using DMX and RGB technology, stadiums can offer dynamic lighting displays that not only brighten the arena but also contribute to the atmosphere of the event, engage the crowd, and reinforce team spirit. As technology continues to evolve, the role of DMX and RGB in stadium lighting will undoubtedly expand, offering even more exciting possibilities for the future of sports and entertainment lighting.
